Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging

Product Categories
Qingzhou Keda Mining Machine co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging

Place of Origin : Shandong china

Brand Name : Keda

Price : $5,000/sets >=1 sets

Certification : CE 9001

MOQ : 1

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Pump

Type : Bucket Dredger

Power Type : Diesel

Dredging Depth : 10 m

Draught : 15 cm, 30 cm

Dimension(L*W*H) : 505*445*460, 1600x395x370

Weight : 100 KG, 100kg

Warranty : 1year

Power : 11 HP

Engine : Diesel power

Gold Dredger Color : Customized

Working capacity : 5 t/h

gold dredger usage : Small Gold Dredger For Sale

Rotate speed : 3600 rmp

Applicable Industries : Energy & Mining

Showroom Location : None

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Condition : New

Contact Now

Diesel Engine Small Gold Dredge For Sale
Product Description
1. Feature of Small Gold Dredge:
  • Completely assembled and fully tested before delivery
  • It can be easily transproted and is lightweight and quick to asseble.
  • Standard design, allowing early delivery and low price
  • Powered by a varety of engines,pump offering a choice of power to fit individual needs.
Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging
2. Specifications of Small Gold Dredge
Model QFT3-2 QFT4-3 QFT5-3
Machine size 2300*1500*1000mm 2500*1500*1000mm 2500*1500*1000mm
Diesel engine
Engine Single cylinder air cooled diesel engine Single cylinder air cooled diesel engine Single cylinder air cooled diesel engine
Power(hp) 5 7 12
Rotate Speed 3600rpm 3600rpm 3600rpm
Fuel consumption ≤284g/Kw·h ≤283g/Kw·h ≤280g/Kw·h
Fuel tank capacity 2.65L 3.3L 5.5L
Pump
Size(L*W*H) 550*450*450mm 550*470*450mm 550*500*480mm
Inlet/Outlet diameter 50mm(2inch) 80mm(3inch) 100mm(4inch)
Lift 30m 30m 25m
Max dredging depth 8m 8m 8m
Working capacity 6m³/h 10m³/h 15m³/h
Gold Chute
Size(L*W*H) 400*1500mm 500*1700mm 500*1700mm
Remark With carpet With carpet With carpet
Floating
Size(L*W*H)mm 1600*395*370 1600*395*370 1600*395*370
Handheld sucker 3inch 4inch 5inch

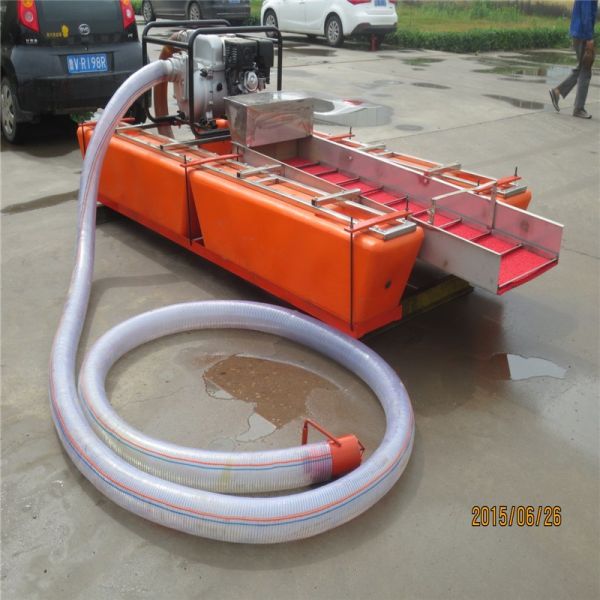

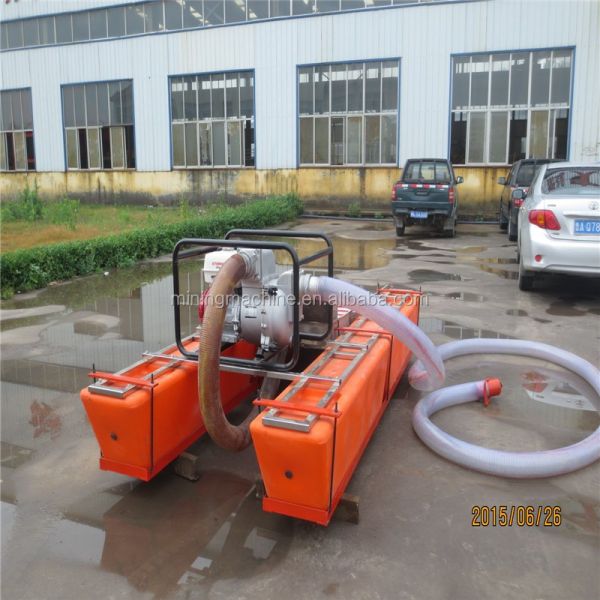

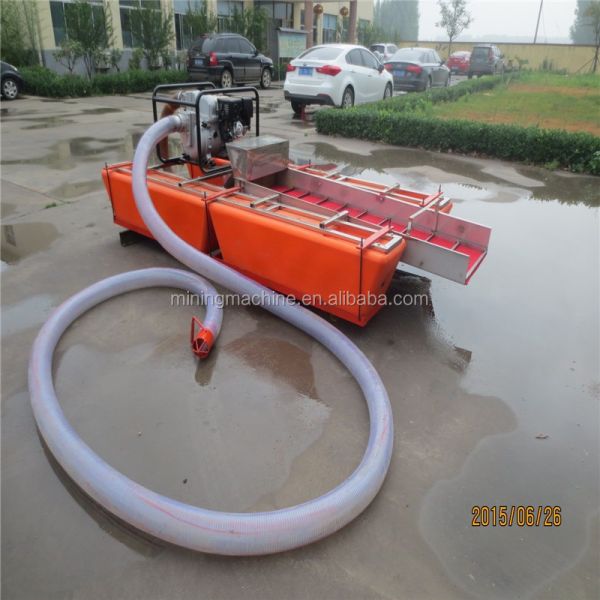

3. Small Gold Dredge Show:
  1. This is a kind of portable gold dredger equipment, which dredges gold from rivers with little stone, in the working process; it suctions sand underwater and mines gold in one time.
  2. As you can see from the pictures below, the structure of our bucket wheel gold dredger is specially desgined to ensure the stability and low maintenance.
  3. Powered by a varety of engines,pump offering a choice of power to fit individual needs.
  4. Gold suction dredge come in a wide variety of designe and size of intake.The size from a small backpack size intake from 3 inch to 5 inch.

Floating

Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging Portable Mini Dredger 15cm 30cm Draught 505*445*460 for Sand Dredging
Company Information
4. Our company-- Professional Small Gold Dredge Manufacturer:
  1. Our products can design as customers' requirement and geographical condition.The products are of a great variety including 800-1500m3/h.
  2. We are a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service with the good CAD Aided Design R & D center and physical mineral processing laboratory.
  3. We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.

1. Dredgers

  • Cutter Suction Dredgers
  • Bucket Chain Dredgers
  • Auto Pump Dredgers
  • Jet Suction Dredgers
  • Gold dredgers

2. Mineral Processing Machinery

  • Gold Dredging & Mining Machinery
  • Iron Mining Dredging & Mining Machinery

3. Sand Processing Machinery

  • Sand Sieving Machinery
  • Sand Washing Machinery
Our Services
5. Best Service
  1. 24 Hours telephone and email support
  2. Import parts 1 year warranty
  3. Professional technology support,No matter in installation,after sale service
FAQ
6. In order to provide best proposal for you,could you tell us the details as below:
  1. Working capacity(m3/h)of the dredger
  2. Depth of the water (m)? What is the digging depth (below the water)?
  3. Gold extraction type: use gold carpet, shaking chute, or centrifugal concentrator ?
