Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Name: Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System
Brand: KeDa
Price: 75 USD

Wholesale Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System from china suppliers

Place of Origin : shandong china

Brand Name : KeDa

Model Number : CSD150；CSD200;CSD250;CSD300;CSD400;CSD450

Price : $75,000/sets >=1 sets

Certification : CE 9001

MOQ : 1

Delivery Time : 30

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Pump

Type : Suction Dredger

Power Type : Diesel, Diesel

Dredging Depth : 8 m

Draught : 0.85m-15m

Dimension(L*W*H) : 12.5*4.6*1.3

Weight : 2000 KG

Warranty : 1 year warranty

Usage : Dredging of Sand

Standard dredging depth : 6-15m

Cutter head : 1 stage

Diameter : 850-30

Pump model : 8/6 inch

Ladder winches : JC-3000

Swing winch : JC-3000

Hull Material : Steel

Width : 4-15m

Colour : customized

Contact Now

River Sand Vessel Rake Suction Dredger Mud Dredger

Product Description

Reliable hydraulic system with self-protection, high efficiency and low cost.

Simple, rapid assembly and dismantling, a good underwater dredging machine.

We can produce 4"inch to 20"inch dredgers with max. dredging depth 20m. The dredger can be customized.

Has passed ISO9001 & The Certification of the Survey.

Adapt submerged arc welding technology, strong stability and beautiful in design.

Special marine steel plate, strong & durable.

Pump & gear box combined together, reduce the maintenance.

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Basic parameter

	KDCSD100	KDCSD150	KDCSD200	KDCSD250	KDCSD300	KDCSD350	KDCSD450
Water Flow(m3/hour)	280	450	800	1200	1800	2500	3500
Length(m)	19	22	26	33	35	39	41
Width(m)	3.5	4	5.3	6.6	6.6	7	8
Height(m)	1	1.25	1.5	1.8	1.8	2	2.5
Max. Dredging Depth(m)	8	10	12	15	15	17	17
Suction Diameter(mm)	150	200	250	300	400	450	650
Discharge Diameter(mm)	100	150	200	250	300	350	450
Total Power(kw)	132	220	336	460	670	895	1166
Cutter Head Diameter(mm)	650	850	950	1200	1200	1500	1700
Discharge Distance(m)	400	500	800	1000	1200	1500	1800

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Detailed Pictures

Ship Body Under-building

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

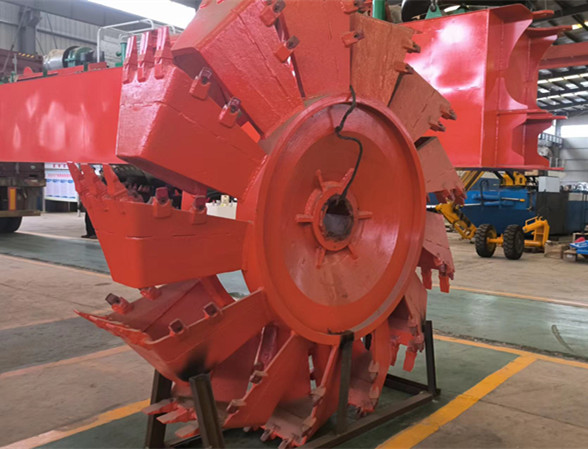

cutter head

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Bucket head for your choice

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Pumps and Engine

Packaging & Shipping

Our Factory

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

Our Services

Dredging project consulting will be provided by our experienced engineers.
Dispatching engineers overseas guidance for equipments installation and testing.
Training your local first batch workers.
Solving the problems during the equipment operation.
Providing whole production line equipments and spare parts with the best price.

Spiral Suction Head Cutter Suction Dredger 2000KG Capacity with Hydraulic System

FAQ

1.Is our company a direct or indirect producer? — Our company is a direct producer.
2. What's the main product of our company? — Our main product is Cutter Suction Dredger
3. Are our products certified or patented? — Yes, we only provide certified products.
4. Can we offer good after sales service? — Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
