Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

Place of Origin : Shandong china

Brand Name : Keda

Packaging Details : In container or as customer's request

Supply Ability : 15 Set/Sets per Year

Price : $250,000/sets >=1 sets

Certification : CE 9001

MOQ : 1

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Core Components : Engine, Gearbox

Type : Bucket Dredger

Power Type : Diesel

Dredging Depth : 16 m, 24m

Draught : 200 cm

Dimension(L*W*H) : 18*6*1.18m

Weight : 8000 KG

Warranty : one year

Processing capacity : 50-300m3/h

Dredging depth (m) : 5-25m

Cyclone Type : Hydrocyclone

Drive mode : anchoring

Usage : sand dredging,gold dredging

Application : river training boat

Applicable Industries : Energy & Mining

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Port : Qingdao Port

Contact Now

Gold dredger with Chain and bucket/Gold mining dredger
Product Description
1.Feature
  1. It is made of two or three pontoons,which used for installing various equipment, including operating cabin, pump cabin, etc.
  2. It is made of the dredging bucket, chain, underwater big arm, upper and lower quadrangle wheel, active power, main reducer, main frame and other components. It is mainly used in surface mining operation and ore mining.
  3. It is made up of sand trommel screen, gold washing machine, pump, gold selecting chute or centrifugal concentration machine, etc.
  4. It is made of conveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
  5. It is made of gantry, arm lifting winch, anchor winch, sliding winch, etc.. It is used for lifting and falling underwater arm, mooring dredger ,etc.
  6. Diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.

Model

KD-1

KD-2

KD-3

KD-4

KD-5

KD-6

KD-7

pontoon

Length
(m)

A

13m

14m

15m

16m

17m

22m

24m

B

14m

14.5

15.5m

17m

18m

20m

22m

C

15.5m

16m

16.5m

18m

20m

20m

22m

Width
(m)

A

1.5m

1.5m

1.5m

1.5m

1.7m

1.8m

1.8m

B

1.5m

1.5m

1.5m

1.5m

1.7m

1.8m

1.8m

C

1.7m

1.7m

1.7m

1.7m

1.8m

1.8m

1.8m

Bucket(Pic)

42-46

48-52

52-58

60-66

66-78

60-70

70-76

Dredging depth(m)

4m-4.8m

4m-6m

4m-7.5m

4m-10m

4m-12m

8m-14m

8m-16m

Output m3/h

60-100m3(adjustable)

Power

1105-1100

1110-1100

1115-1100

1110-1100

1115-1100

1100-4100

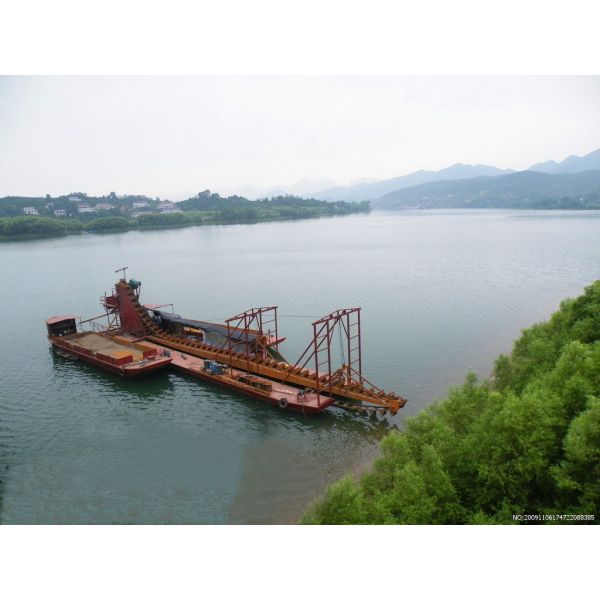

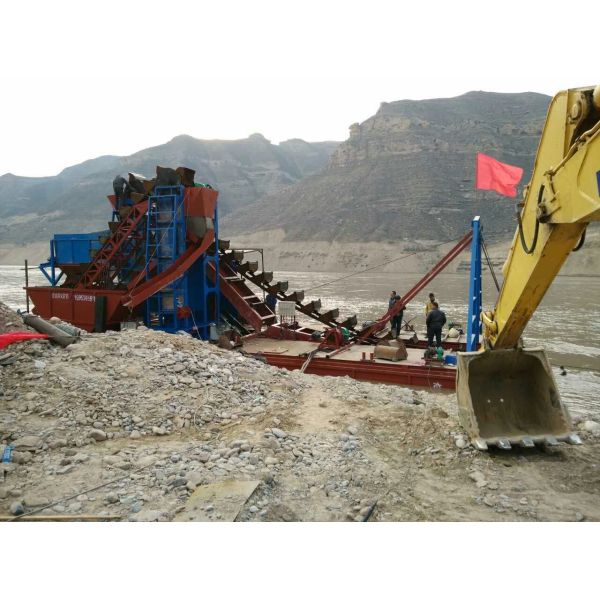

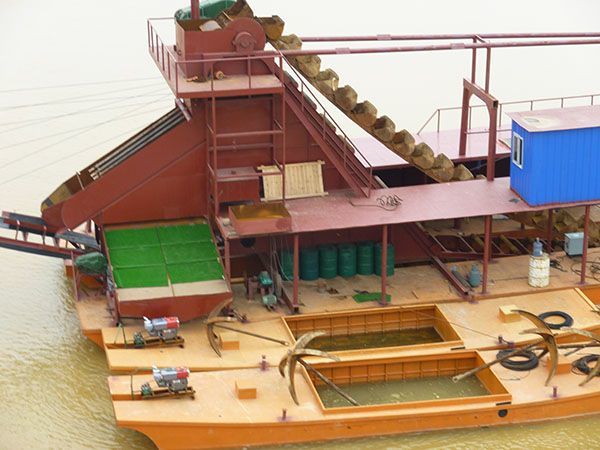

2.Detailed Photograph

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm DraughtDiesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm DraughtDiesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm DraughtDiesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

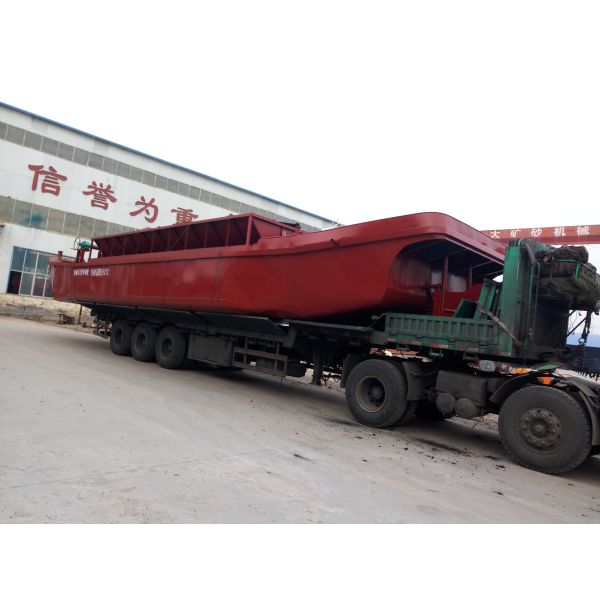

Packaging & Shipping

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

Our Services

♦ Pre-sale services: Passion &thoughtful

We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

♦ Sale services: Oversea Technicians

Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.

♦ After-sale services: Faithfulness

One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

Company Information

Qingzhou Keda Mining Machine Co., Ltd is a factory with professional manufacture experience, compared with trading company, we have more advantages as below:

  1. competitive price
  2. customers can visit our factory and test our machines at anytime.
  3. repairing the machine in time.
  4. on-time delivery
Our factory:

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

Our certification:

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught

FAQ
1.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
  1. What type is the mining? Is it rock stone? or it is sand?
  2. If rock stone,What is the general particle size(mm) of the raw ore?
  3. What is the handling capacity(tons per hour) you plan to work with?
  4. What is the elements of the raw ore? How much percent % of each minerals?
