Diesel Jet Suction Dredger Dismountable for River / Sea Dredging Desilting

Name: Diesel Jet Suction Dredger Dismountable for River Sea Dredging Desilting
Brand: Keda
Price: 80 USD

Wholesale Diesel Jet Suction Dredger Dismountable for River / Sea Dredging Desilting from china suppliers

Place of Origin : Shandong china

Brand Name : Keda

Certification : CE 9001

Price : $80,000/sets >=1 sets

MOQ : 1

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Gearbox

Type : jet suction sand dredger

Power Type : Diesel

Dredging Depth : 20 m

Draught : 10 inch

Weight : 15 KG

Warranty : 1 Year

Product name : Diesel Engine Jet Suction Sand Dredger from Keda

Power : Diesel

Dimension : As per model

Color : Customized Colors

Usage : River/Sea dredging, desilting ,land reclaimation

Application : Dredging

After-sales Service Provided : Video technical support

Applicable Industries : Retail, Construction works , Energy & Mining

Showroom Location : Philippines, Saudi Arabia, Indonesia, Russia, Argentina, Colombia

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Contact Now

Product Description

Jet Suction Dredger /Sand Suction Dredger

The jet suction dredger of steel construction, the non self-propelled, dismountable type is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger consists of a main pontoon and two side pontoons. The construction makes disassemble quickly and easier to transport by road, rail or sea, also more convenient to replace at site. Engine and dredging pump are on the main pontoon. Side pontoons could be used as oil storage tank, ballast tank and dry cabin. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, switches, indicators, gauges are equipped on the control desk. Only two operators can control the dredger in the operation room. Four layers anticorrosive marine paint provide the zinc anode protection to improve effect of corrosion.

Diesel Jet Suction Dredger Dismountable for River / Sea Dredging Desilting

Our Cases

Product parameters

Model	HD-JSD100	HD-JSD200	HD-JSD300	HD-JSD400	HD-JSD500
LOA	27.0m	29.0m	30.0m	33.0m	36.0m
Hull size LBH	23.04.01.4m	25.04.61.4m	26.04.61.8m	32.06.42.0m	32.06.42.0m
Main Engine	Weichai	Weichai	Weichai	Weichai	Weichai
Main engine power	75kw	88 kw	103kw	258kw	330kw
Dredging pump	8’’/6’’	10’’/8’’	12’’/10’’	14’’/12’’	16’’/14’’
Jet pump power	4kw	7.5kw	11kw	15kw	18.5kw
Dredging depth	9m	11m	13m	15m	16m
Water flowing	540 m3	900m3	1200m3	1650m3	2200m3
Draught	0.6m	0.6m	1.0m	1.1m	1.2m
Max. capacity	100m3/h	180m3/h	240m3/h	350m3/h	440m3/h

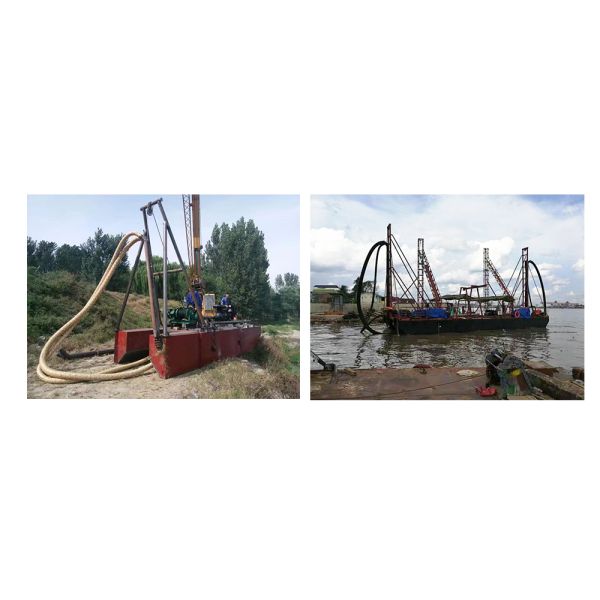

Diesel Jet Suction Dredger Dismountable for River / Sea Dredging Desilting Images
