Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining

Brand Name : Keda

Place of Origin : Shandong china

MOQ : 1

Price : $8,000/units >=1 units

Payment Terms : T/T,L/C

Type : Gravity Separator

Production Capacity : 90%

Voltage : 220V/380V

Dimension(L*W*H) : 8300*2400*4700mm

Weight : 10 KG

Warranty : 1 Year

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Pump, Engine

Key Selling Points : High Rigidity

After-sales Service Provided : Engineers available to service machinery overseas

Spare parts of Vibrating screen : Available

Working Capacity : 10-400tons

Usage : Gold Processing Plant

Wear parts : Trommel

Recovery rate : 85-95%

Move way : Portable Mobile Gold Trommel Wash Plant

Classify : Mini,Small,Normal

Optional equipment : Gold Cip Plant

Capacity : 50-300t/h

Applicable Industries : Energy & Mining

Showroom Location : None

Condition : New

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Certification : CE 9001

Contact Now

VR
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Product Overview

Gold Panning Equipment 6-S Gold Mining Shaking Table

Shaking table is also called table concentrator, is a mine separation device for fine minerals working by gravity.
As per different minerals have different density, Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Copper, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Rutile, Ilmenite, Lead, Zinc, Mercury, Copper, Aluminum, etc.
The shaker effective recycling granularity scope is 2-0.037 mm.
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Our Advantages

1) High recovery ratio;
2) High concentration ratio;
3) Easy installation;
4) Simple operation;
5) Deck constructed of fiber glass;
6) Seven different decks to choose;
7) Long working life;
8) Adjustable stroke length and speed.

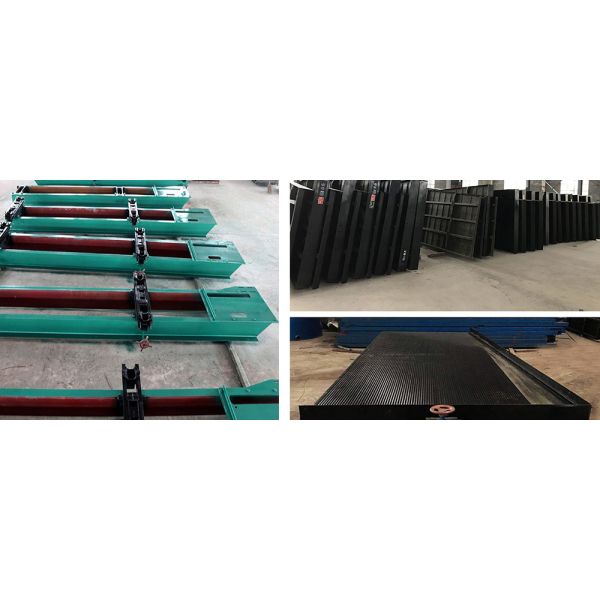

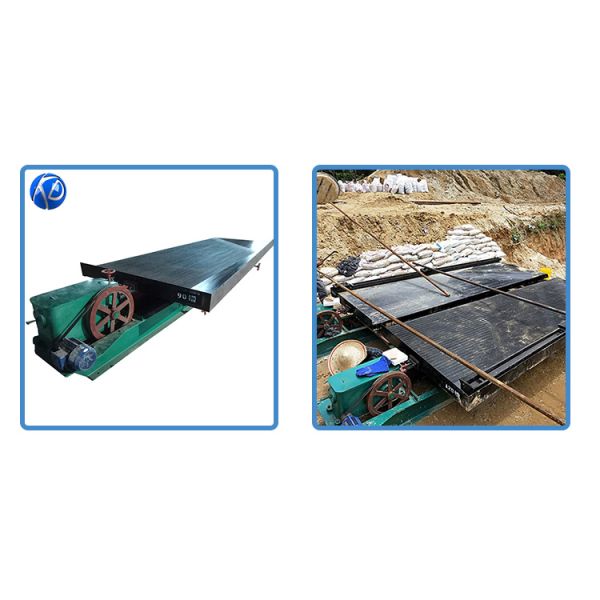

Details Images
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Product parameters
Specification
6-S model
6-S model
6-S model
6-S model
Bed model
LY(S)
LY
LY
LY
Bed surface size(mm)
4500*1850*1560
3000*1620*1100
2100*1050*850
1100*500*430
Square meter(M2)
7.67
4.08
2
0.51
Feed size(mm)
Coarse sand
2-0.5
2-0.5
2-0.5
2-0.5
Fine sand
0.5-0.074
0.5-0.074
0.5-0.074
0.5-0.074
Mud
0.074-0.037
0.074-0.037
0.074-0.037
0.074-0.037
Feeding density(%)
10-30
10-30
10-30
10-30
Processing capacity(t/h)
Coarse sand
1-2.5
0.6-1.5
0.4-0.8
0.1-0.2
Fine sand
0.8-1.2
0.3-0.8
0.2-0.5
0.05-0.1
Mud
0.3-0.9
0.2-0.6
0.1-0.4
0.03-0.05
Water consumption(t/h)
0.4-1.8
0.3-1.5
0.2-1
0.1-0.5
Stoke(mm)
10-30
10-30
10-30
9~17
Frequency of stoke(time/min)
240-360
210-360
210-360
130-210
Transverse slope (degree)
0°~10°
0°~10°
0°~10°
0°~8°
Motor
Model
Y70L-4
Y100L-4
Y90L-4
Y80L-4
Power(kw)
1.1
1.1
1.1
0.55
Speed(r/min)
1400
1400
1400
1400
V-belt (mm)
A-2000
A-1033
B-2007
A-1245
L*W*H Dimension(mm)
5630*1850*900
4075*1320*780
3040*1050*1020
1530*500*800
6S shaking table feeding density reference table
Model
Feeding density(%)
Coarse sand
Fine sand
Mud
6S model shaking table
20-30
18-25
15-20
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Company Profile
Industrial Gold Shaker Table with 220V/380V Voltage, 10-400tons Working Capacity, and 85-95% Recovery Rate for Energy & Mining
Why Choose us?
1.More than 10 years of production experience in dredgers and mineral processing equipment
2.Strong technical service team, can provide customized services
3.Own design team with 21 patents
4.Industry and Trade Integration Enterprise
5.The factory covers an area of over 22,000 square meters
6. 3 production lines-dredger-cleaning boat-gold mining equipment
