Product Description

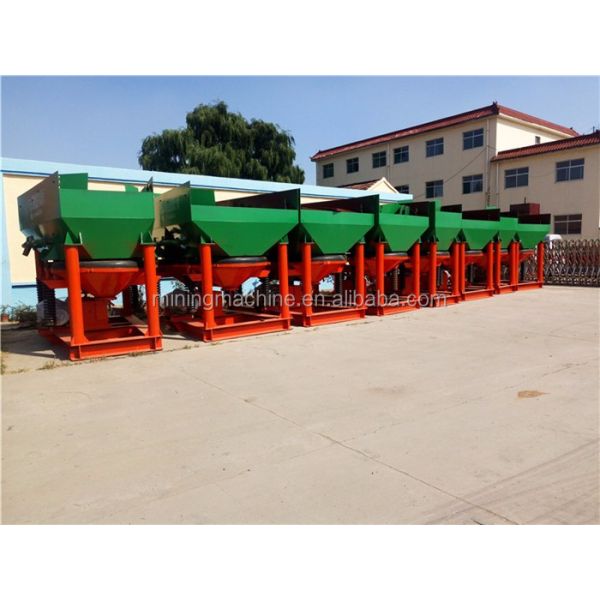

I. INTRODUCTION of Gravity Separator Diaphragm Jig/jig mining equipment/jigger separator
KDTT jigging machine is an effective and energy saving gravity separation device that has found a wide application in recovery for various kinds of minerals. Unlike the traditional jigging machine, This jig machine produces speedy upward water flow and slow downward flow, so the bed layer is elevated integrally and settled fully with a long effective loose time. As a result, the jig machine has extremely good performance for recovery of gold and diamond.
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted
II. BASIC PARAMETERS of Gravity Separator Diaphragm Jig/jig mining equipment/jigger separator
| Item | Specification |
| Model | JT-0.57 | JT1-1 | JT2-2 | JT3-1 | JT4-2 | JT5-2 |
| Jig room | L*W(mm) | 450-750*950 | 450-900*1500 | 1070*1070 | 960-2000* 1950 | 1510*1510 | 1200-2000* 3150 |
| Stroke Coefficient | 0.57 | 0.64 | 0.45 | 1 | 0.58 | 0.58 |
| Max Approved grain size(mm) | 6mm | 5mm | 10mm | <20mm | 8mm | 8mm |
| Working Capacity(t/h) | 1-2.5 | 2-3 | 4-8 | 10-15 | 12-16 | 20-25 |
| Water Consumption (m/h) | 1-2 | 2-3 | 2-4 | 3-6 | 4-8 | 5-10 |
| Diaphragm | Stroke(mm)(Detailed data can supply) |
| | Stroke frequency (min)(Detailed data can supply) |
| Motor | Power(KW) | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 7.5 |
| Dimension(L*W*H)(mm) | 1530*780*1550 | 2060*1112*1890 | 2870*1520*1880 | 2662*2000*3030 | 4240*1990*2750 | 3940*2006*2580 |
| Weight(kg) | 612 | 989 | 1637 | 3260 | 3500 | 3854 |
Company Information
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
The main products of our company :
1 Gold wash plants series: the working capacity ranges from 5tons/h to 500tons/h, including wet gold wash plant used in place with water and dry gold washer used in place without water like in the desert. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
2 Dredgers series: dredgers for mining, sand production, reclamation construction, desilting, land reclamation and so on, including cutter suction dredger, jet suction dredger, bucket type dredger, aquatic weed harvester dredger, all kinds of gold dredgers.
3 Crusher series: including hammer crusher, impact crusher, Jaw crusher
Packaging & Shipping
Way of Packing
* FLC&LCL Export standard container 20/40 GP.
* Steel support & iron sheet sea- worthy package.
* Load: export software scientific loading work
Transportation
* By sea freight.
* MSK/MSC/APL/EMC/WANHAI/KLINE
* Air delivery services
* We will remind you before boat arrives.
FAQ
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1. Is the jig used for land or river?
2. Gold particle size(mm)?
3. Is there have clay and stone, Existing ration%? Max diameter of big stone?
4. If it work on land, Water Distance(m)?
If you have any question ahout our products or company, please let us know, we will try our best to make you satisfied.
